Physician and patient looking at illustrated heart on computer screen.

About the procedure

Learn more about the WATCHMAN Implant design and procedure

How the WATCHMAN Implant works

In non-valvular Afib, >90% of stroke-causing clots that come from the left atrium are formed in the left atrial appendage (LAA).1

The WATCHMAN Implant is a minimally invasive, one-time procedure designed to reduce the risk of strokes that originate in the LAA.

Permanent implant

Minimally invasive

1 day or less average hospital stay

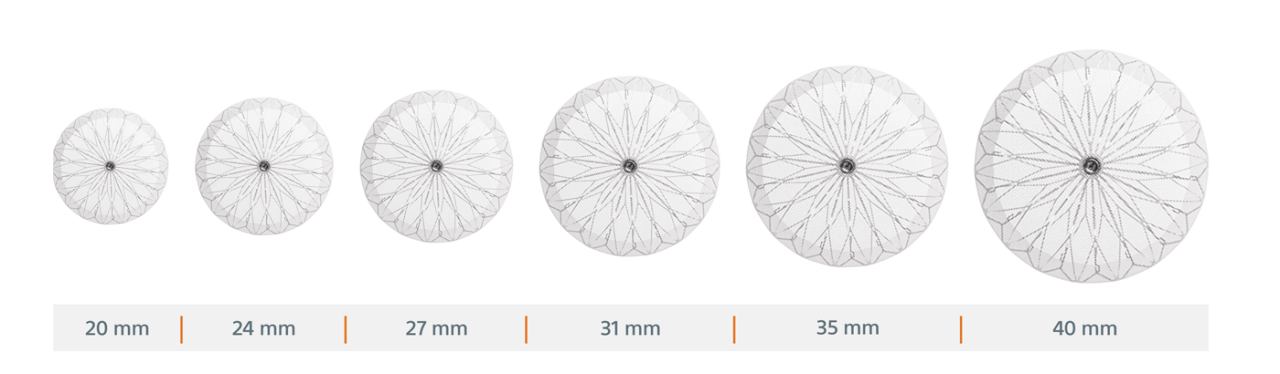

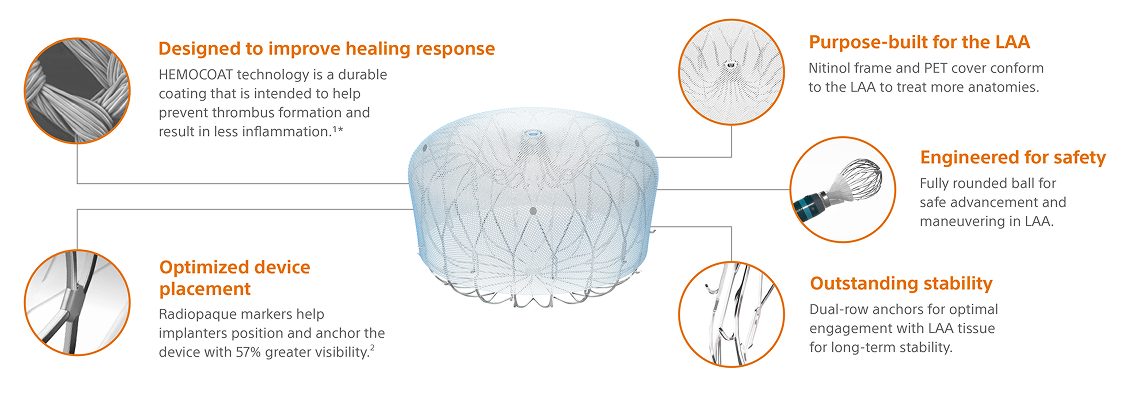

WATCHMAN FLX Pro device design

Built on the proven performance of WATCHMAN FLX, WATCHMAN FLX Pro is the next-generation WATCHMAN Device with new features designed to promote faster healing.2

Implant procedure overview

1

Using a standard percutaneous technique, a guidewire and vessel dilator are inserted into the femoral vein. The implant procedure is performed with fluoroscopy and transesophageal echocardiography (TEE).

2

The interatrial septum is crossed using a standard transseptal access system. The access sheath is advanced over the guidewire into the left atrium and then navigated into the distal portion of the LAA over a pigtail catheter.

3

The WATCHMAN Implant is deployed and released in the LAA.

4

Heart tissue grows over the implant and the LAA is permanently sealed. Patients will then follow the post-implant drug regimen as prescribed by their physician.

5

The implant is fully endothelialized.



WATCHMAN labeling allows for DAPT post-implant

With the approval of immediate DAPT-use post-implant, only the WATCHMAN Implant provides you with flexibility to choose the ideal drug regimen that is best for your patient with clinical outcomes that support both the safety and efficacy in preventing thrombosis and consequent stroke. Additionally, WATCHMAN is the only LAAC device without a requirement of an overnight stay post-procedure.

As always, you should exercise clinical judgment based on individual patient characteristics in determining the most appropriate use of anti-thrombotic drugs for the post-implant medication regimen.

WATCHMAN FLX Pro device.

Post-implant drug regimen options

At TEE, if leak >5mm, patients remain on OAC + ASA until seal is documented (leak <5mm)
*Any P2Y12 Inhibitor and Aspirin

WATCHMAN is implanted at top medical institutions across the country

  • More than 850 major medical centers across the US are certified to implant WATCHMAN
  • The WATCHMAN physician training program involves multiple phases including didactic training, imaging training, training in patient  selection, device selection, complication management, and optional physician proctoring
    • Individual physicians and/or the collective physician-team must be proficient in transseptal skills prior to entering the WATCHMAN training program
Close up of WATCHMAN device with teal overlay.

References:

  1. Blackshear JL., Odell JA. Annals of Thoracic Surg. 1996; 61: 755-759.
  2. Saliba, W. et al. JACC EP, May 2023. Bench testing or pre-clinical study results may not necessarily be indicative of clinical performance. N=12 in a pre-clinical canine study.
  3. Bench study performed under CT by Boston Scientific. Data on file.
